Pre-wire before the drywall goes up, or retrofit later by fishing cable through the attic or basement. The install needs ordinary tools — a drywall saw, a drill, a level and a screwdriver.
Every model pairs a 1″ silk-dome tweeter with carbon-fibre cone woofers, behind a magnetic grille and an invisible bezel. Same recipe from the smallest in-ceiling to the in-wall.
Silver Series: the S550 and S650 in-ceiling and the IW550 in-wall, all 8 Ω. Gold Series: the G650, a 4 Ω, 125 W in-ceiling.
No visible bezel — just a magnetic grille over a clean cut-out. From across the room it reads as ceiling.
Three Silver Series models — two in-ceiling, one in-wall — and the Gold Series G650. All share a 1″ silk-dome tweeter, carbon-fibre woofers, a magnetic grille and an invisible bezel.
The compact one. A 5.25″ carbon-fibre woofer in a Ø205 mm body — for smaller rooms, hallways and secondary zones.
The all-rounder. A 6.5″ carbon-fibre woofer in a Ø244 mm body — for living rooms, kitchens and open-plan spaces.
Two 6.5″ carbon-fibre woofers in a slim 490 × 219 mm in-wall body — left, centre and right on a TV wall, or a main stereo pair.
The Gold Series in-ceiling. A 6.5″ carbon-fibre woofer, a 4 Ω load and the highest power rating of the in-ceiling models.
Figures as published on the Du-son spec sheet.
Swipe to compare →
| SilverS550 | SilverS650 | SilverIW550 | GoldG650 | |
|---|---|---|---|---|
| Type | In-ceiling | In-ceiling | In-wall | In-ceiling |
| Tweeter | 1 × 1″ silk dome | 1 × 1″ silk dome | 1 × 1″ silk dome | 1 × 1″ silk dome |
| Woofer | 1 × 5.25″ carbon-fibre cone | 1 × 6.5″ carbon-fibre cone | 2 × 6.5″ carbon-fibre cone | 1 × 6.5″ carbon-fibre cone |
| Frequency response | 74 Hz – 20 kHz | 70 Hz – 20 kHz | 70 Hz – 20 kHz | 70 Hz – 20 kHz |
| Sensitivity | 87.5 dB | 90 dB | 88 dB | 90 dB |
| Impedance | 8 Ω | 8 Ω | 8 Ω | 4 Ω |
| Recommended power | 55 W | 60 W | 150 W | 125 W |
| Net weight | 1.25 kg | 1.3 kg | 3.3 kg | 1.3 kg |
| Dimensions | Ø205 × 91 mm | Ø244 × 104 mm | 490 × 219 × 94 mmL × W × D | Ø244 × 104 mm |
The G650 is a 4 Ω speaker — check that your amplifier or receiver is rated for 4 Ω loads before connecting it. Driver sizes are given in inches, as is standard for loudspeakers.
Lifts off by hand and snaps back on magnets — nothing to unscrew, nothing to pry.
No visible trim ring around the grille, so the speaker reads as part of the ceiling.
Soft silk dome for clear high frequencies throughout the room. Standard on every model.
5.25″ on the S550, 6.5″ on the S650 and G650, and two 6.5″ cones in the IW550.
8 Ω across the Silver Series. The Gold G650 is 4 Ω — pair it with a 4 Ω-rated amplifier.
Ø205 × 91 mm (S550) or Ø244 × 104 mm (S650, G650). Leave 8 cm (3″) clear behind and around it.
Every figure on this page comes from the Du-son spec sheet. All four models reach up to 20 kHz; the S650, IW550 and G650 go down to 70 Hz, the compact S550 to 74 Hz. For deep bass below that, add a subwoofer.
Starting points for common rooms. Every space is different — send us yours and we'll suggest a layout.
Suggested layout

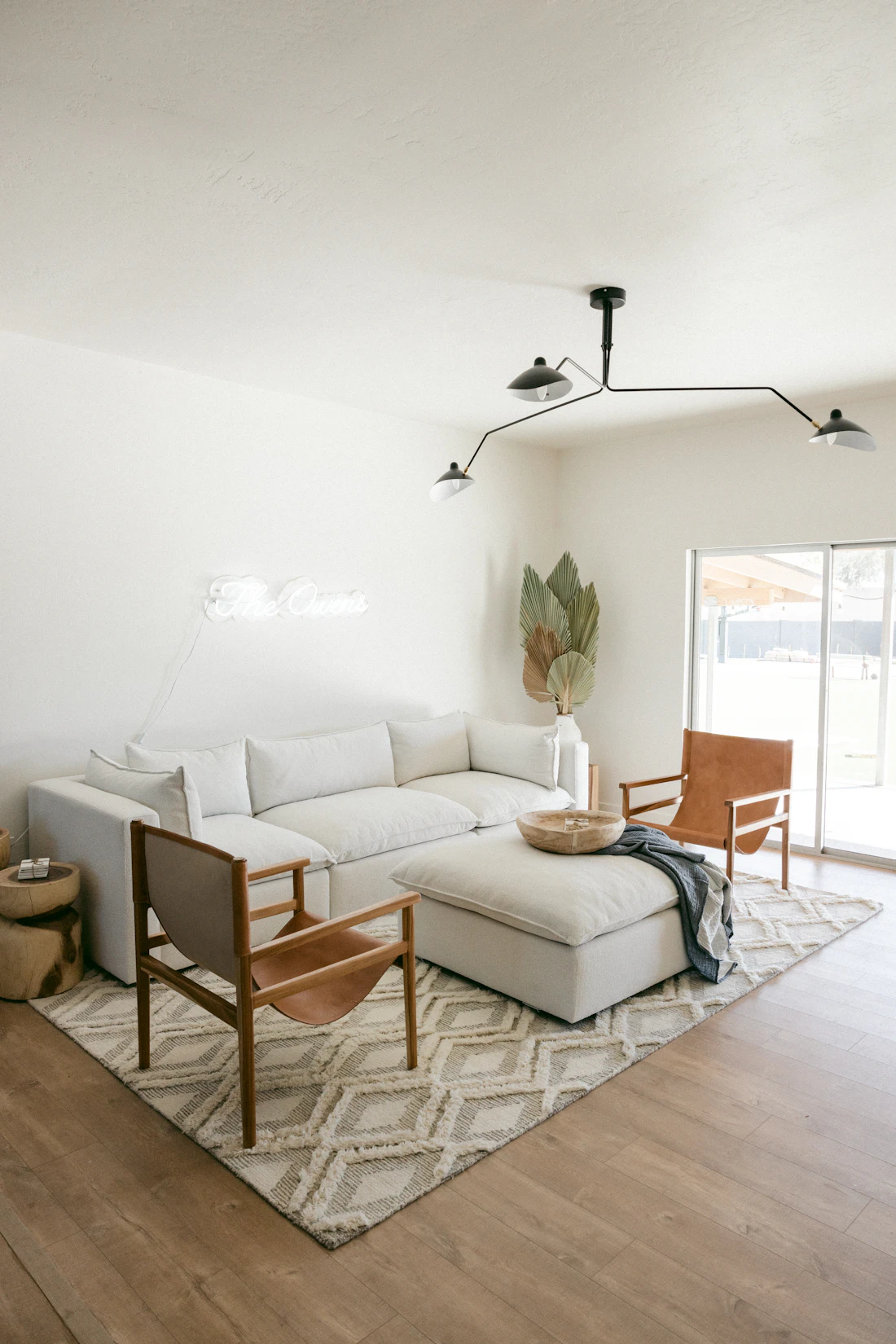

Two S650 in-ceiling speakers, spaced 2–3 m apart either side of the seating.
Photo: Jakob Owens / Unsplash
Suggested layout

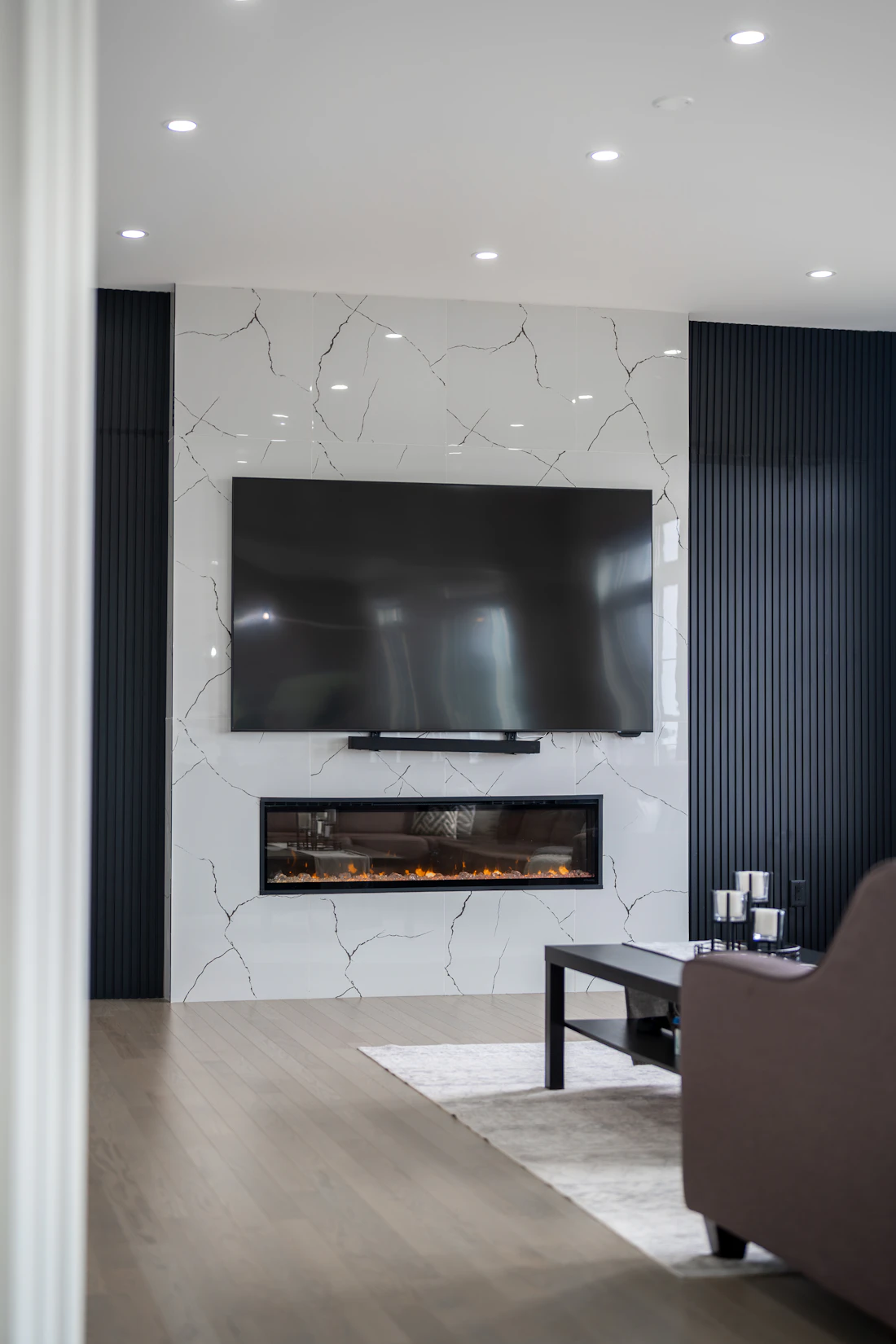

IW550 in-wall for left, centre and right, with G650 in-ceiling surrounds on a 4 Ω-rated receiver.
Photo: Franco Debartolo / Unsplash
Suggested layout

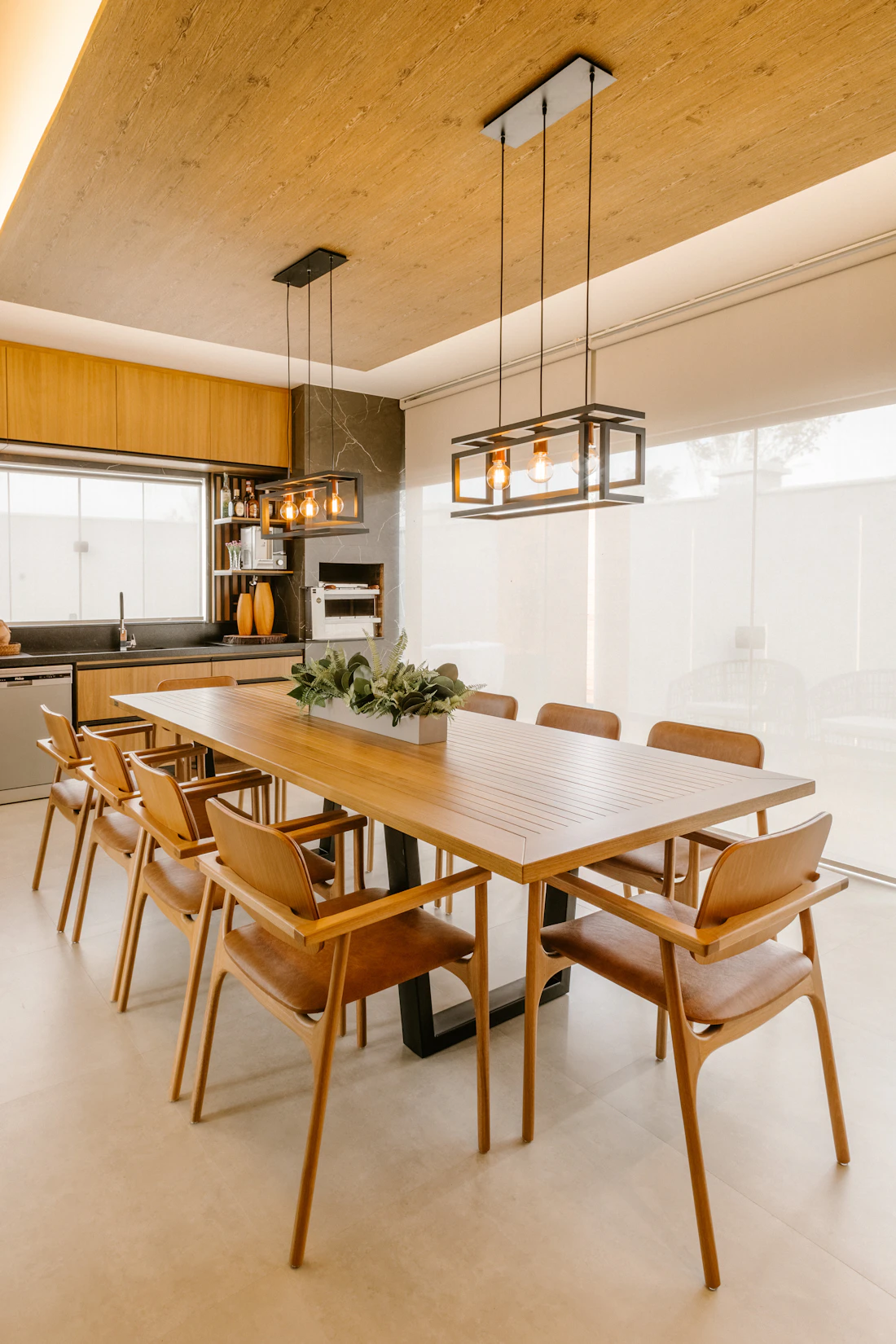

A pair of S550 or S650 over the island and table — background music without boxes on the counter.
Photo: Jonathan Borba / Unsplash
Suggested layout

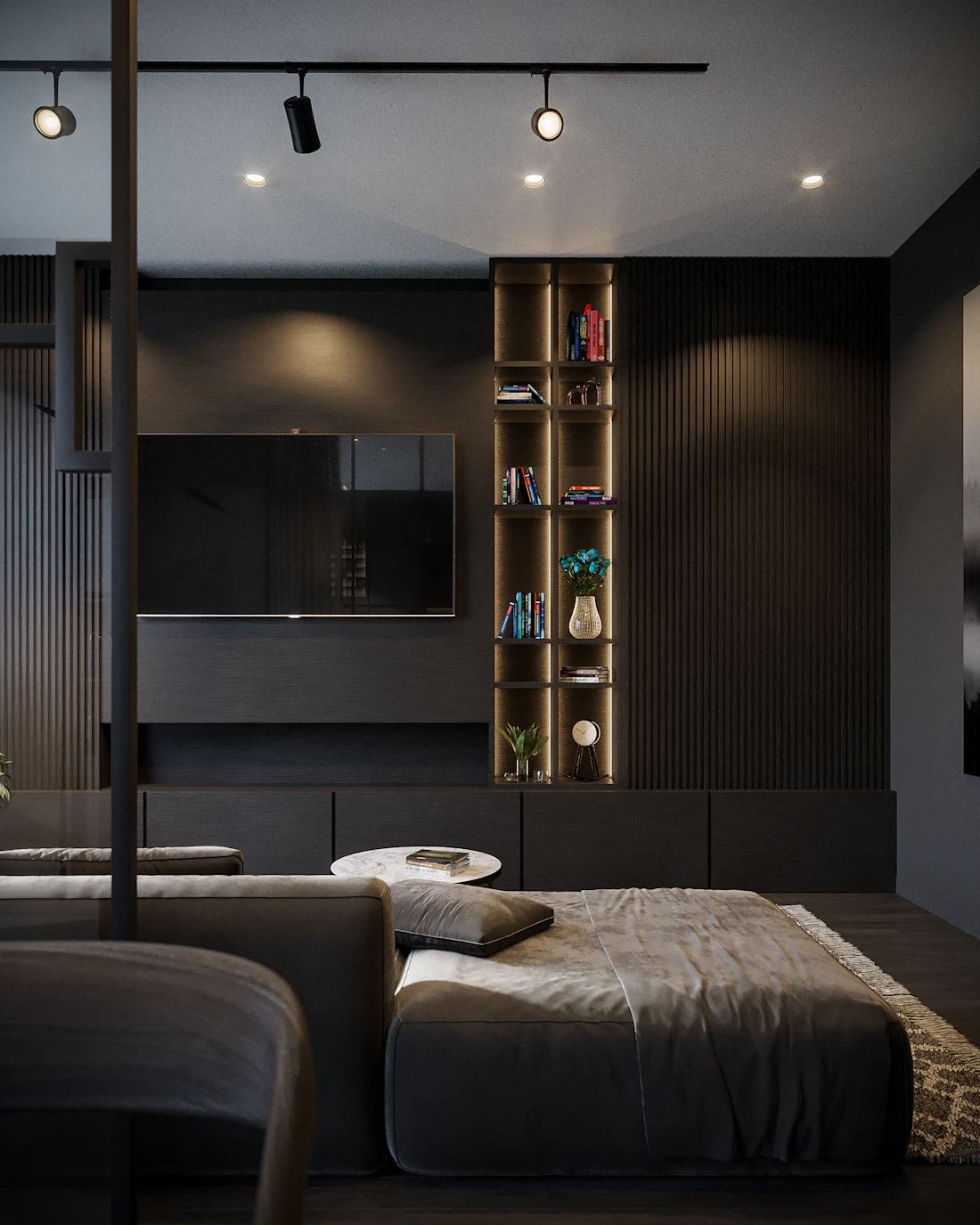

One S550 pair above the bed wall, kept at least 30 cm from the adjacent walls.
Photo: Bilal Mansuri / UnsplashSend a floor plan or a few photos and we'll recommend models and placement.
Ask about your roomTell us the room size, the ceiling height and what you'll be playing. We'll come back with models, quantities and the cable gauge to run.
Summarised from the Du-son installation sheet. The same steps cover new construction and retrofits.
New construction: before the drywall goes up, run two pairs of polarity-coded two-conductor speaker wire from the receiver to each speaker location. Tie the loose ends to a nail so they're easy to find once the drywall is on.
Retrofit: plan the cable path first — an attic or basement often works — then fish the wire through to the cut-outs.
Use the same cable length for left and right, and leave an extra 60 cm (2 ft) at each end for the connections.
The length of the run sets the minimum gauge.
| Cable run | Minimum |
|---|---|
| Under 2 m (6 ft) | 18 AWG |
| 2–9 m (6–30 ft) | 16 AWG |
| 9–15 m (30–50 ft) | 14 AWG |
| Over 15 m (50 ft) | 12 AWG |
Drawings, photos, or a rough idea on the back of a napkin — all of it works. Tell us the room and we'll suggest models and placement.
